RAMATECH Machine Tools is a leading manufacturer of Inclined PVC Belt Conveyors for packaging, pharmaceutical, food-processing and industrial material-handling applications.
A flat conveyor is ideal for moving products horizontally. But once your packaging line needs to lift cartons, pouches, containers or components from one operating level to another, the conveyor requirement changes. As an Inclined PVC Belt Conveyor Manufacturer in Ahmedabad, we design systems for controlled product transfer where elevation, stability and line layout matter just as much as forward movement.
The Real Difference Is Not the Belt — It Is the Transfer Path
Flat and inclined conveyors can both move products through a production line, but they solve different layout problems.
A flat conveyor transports the product at nearly the same height from the loading point to the discharge point. An inclined PVC belt conveyor introduces a controlled rise or drop, allowing two machines or workstations at different heights to connect without relying on manual lifting.
If your product has to change elevation between two process points, a flat conveyor may no longer be the practical choice.
Inclined PVC Belt Conveyor vs Flat Conveyor
The easiest way to decide between the two is to compare what each arrangement is expected to do.
| Requirement | Flat Conveyor | Inclined PVC Belt Conveyor |
|---|---|---|
| Horizontal product movement | Suitable | Suitable when incline is set low |
| Transfer between different heights | Limited | Designed for this purpose |
| Product retention on a slope | Normally not required | Cleats and sidewalls can be added |
| Adjustable transfer angle | Usually horizontal | 0° to 35° adjustable |
| Packaging line level changes | Less suitable | Better suited |
| Layout customization | Available | Length, height, width and incline can be configured |

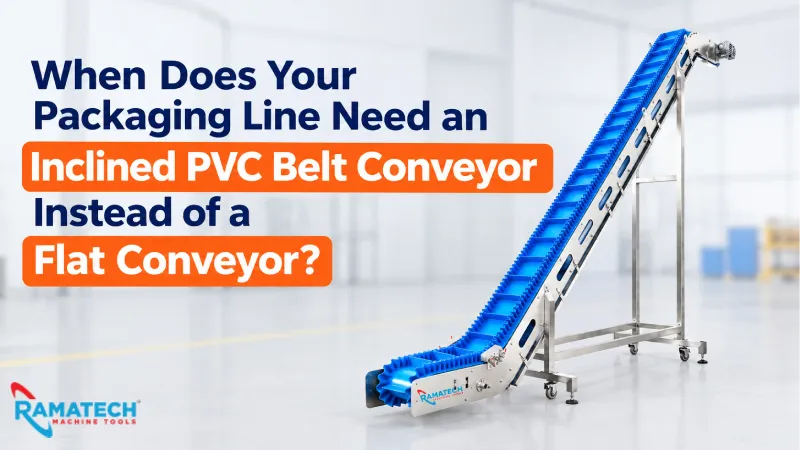

Our Inclined PVC Belt Conveyor can be built with an adjustable inclination from 0° to 35°, with optional cleats and sidewalls for improved product stability.
An Inclined Conveyor Is Needed When Two Machines Operate at Different Heights
Packaging lines rarely remain at one fixed working height from beginning to end. A product may leave one machine at a lower level and need to enter a filling, sealing, coding, inspection or collection station positioned higher up.
Trying to bridge that height difference with a horizontal conveyor does not solve the actual transfer requirement.
An inclined conveyor creates a continuous route between those levels. RAMATECH Machine Tools offers conveyor lengths from 1.5 to 5 metres, with the layout designed according to the application. Discharge height can also be configured around the plant arrangement.
Choose an Inclined PVC Belt When Products Start Sliding Back
The steeper a conveyor becomes, the more important product stability becomes.
Cartons with smooth surfaces, flexible pouches, containers and industrial components may not remain in position on a plain inclined belt under every operating condition. This is where belt configuration becomes important.
Optional cleats and sidewalls can help:
- Keep products securely positioned while moving upward.
- Reduce backward movement on the inclined section
- Support pouches and smaller packs during elevation
- Improve product containment near the belt edges
- Maintain more controlled spacing during transfer
As an Inclined PVC Belt Conveyor Manufacturer in Ahmedabad, we recommend considering the product shape, contact surface, weight and required angle before deciding whether a plain belt or cleated arrangement is suitable.
Your Floor Layout May Be the Strongest Reason to Use an Incline
Not every factory can expand its packaging line horizontally.
Machines, columns, operator areas and existing production equipment can limit the amount of floor space available. In these cases, using elevation can make the product flow easier to integrate with the available layout.
An inclined conveyor can connect lower and higher stations without creating a separate manual transfer point. The machine can be configured with belt widths from 200 to 600 mm and lengths designed around the required installation space.
The right conveyor should follow your production layout instead of forcing your entire packaging line to follow a standard conveyor size.
When a Flat Conveyor Is Still the Better Option
An inclined conveyor should not be chosen solely because it provides a wider range of configuration options.
If your products enter and leave at approximately the same height, a flat conveyor may remain the simpler and more appropriate option. It is particularly practical where the main requirement is straightforward horizontal movement through coding, inspection, assembly or packing operations.
The decision should be based on the actual transfer path.
Choose an inclined conveyor when material must be transported between different heights, and use a flat conveyor when the entire process operates at the same level.
Product Type Matters Before You Decide the Incline
The conveyor angle cannot be selected independently of the product.
A stable carton with a broad base behaves differently from a soft pouch, cylindrical container or small industrial component. Belt speed, incline angle and optional cleats all influence how the product moves.
Before recommending a configuration, we look at factors such as:
- Product type and dimensions
- Product weight and base stability
- Required loading and discharge heights
- Available conveyor footprint
- Required production speed
- Need for cleats or sidewalls
- Frame material and plant environment
This information helps an Inclined PVC Belt Conveyor Manufacturer in Ahmedabad configure the conveyor around real operating conditions rather than using a fixed catalogue arrangement.
Variable Speed Becomes Important During Line Integration
The conveyor must operate only when connected to other equipment.
For example, if the inclined conveyor supplies some other packaging machine, too fast speed will result in product overflow, while too slow speed will create a problem at the preceding step of production.
Our Inclined PVC Belt Conveyor works on a variable speed principle with its speed being from 0 to 30 m/min.
Drive system is equipped with a geared motor that can either work directly or through the chain drive depending on the configuration.
When Should Cleats and Sidewalls Be Considered?
However, Cleats and sidewalls are not mandatory equipment for all inclined conveyors.
With a shallow incline, some products can move in a reliable manner on a conventional PVC belt. As the degree of inclination increases or the tendency of product movement increases, retention devices might be considered.
The criteria depend on the combination of degrees of inclination, the nature of the packs, type of belt and production speed. It is possible that cartons, pouches and containers will require different approaches even if they move along the same distance.
Our task is to establish which one is better suited to the specific situation rather than installing unnecessary equipment.
Why Choose Us
Here at RAMATECH Machine Tools, we build our inclined PVC belt conveyors based on the needs of the product and production, along with the plant layout, instead of giving you just one fixed set-up. The system comes in various forms like 200-600 mm belt width, 1.5-5 m conveyor length, adjustable slope of 35°, speed control and with optional cleats/sidewall. We are an Inclined PVC Belt Conveyor Manufacturer Ahmedabad, with the option for SS 304 or powder coated MS frames.
Conclusion
Flat belt conveyors will still serve their intended purposes if your packaging system involves nothing but horizontal transport of goods. The inclined PVC belt conveyor comes into play where cartons, pouches, containers or component parts have to be transported from one height level to another; where the floor layout necessitates such a change of level or when the product needs controlled height change between machinery. The critical question here is not whether flat or inclined is preferred, but rather how the product will be transported through your system.
Planning a packaging line where products need to move between different heights? Speak with RAMATECH Machine Tools before selecting a standard flat conveyor. As an Inclined PVC Belt Conveyor Manufacturer in Ahmedabad, we can review your product size, transfer height, conveyor length and production requirement and recommend a suitable configuration.
Call +91 99799 96006 or email ramatechmachinetools@gmail.com today to discuss your application and request a quotation.
